3rd Party VPN Car Connector Session

Last updated: 11/8/2025 11:26:32 AM

Creating a Connection (3rd Party VPN Service)

  1. Start your chosen third-party VPN on both PCs and connect.
    (Steps vary depending on VPN provider and are beyond the scope of this document.)
  2. Navigate to Provide Remote Diagnostic.
  3. Read the disclaimer carefully and tick the checkbox if you agree.

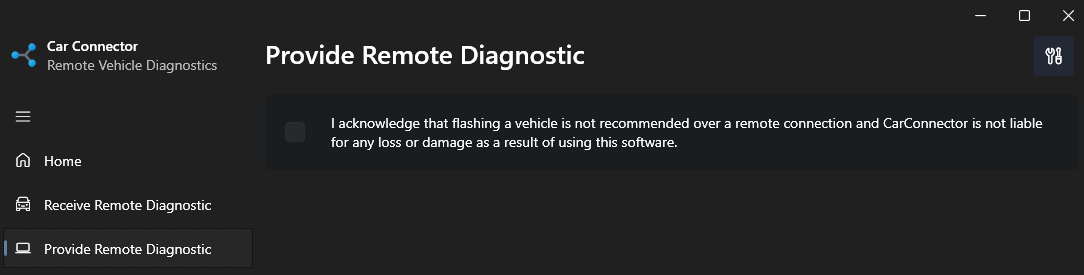

Disclaimer screen
Disclaimer screen
  1. Select Use Other VPN Solution.

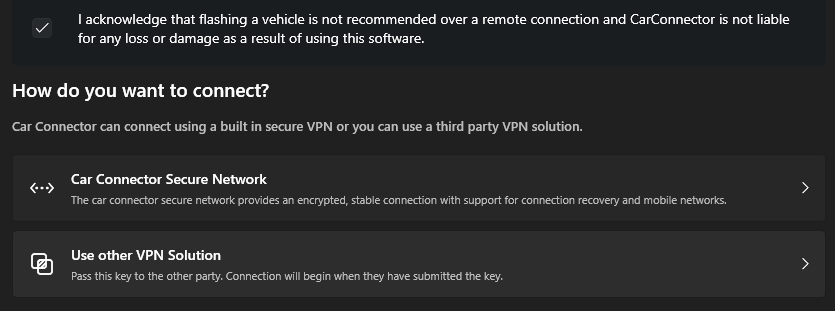

select VPN screen
VPN Selection screen
  1. Select the VPN provider’s Network Card - in this scenario: Hamachi.

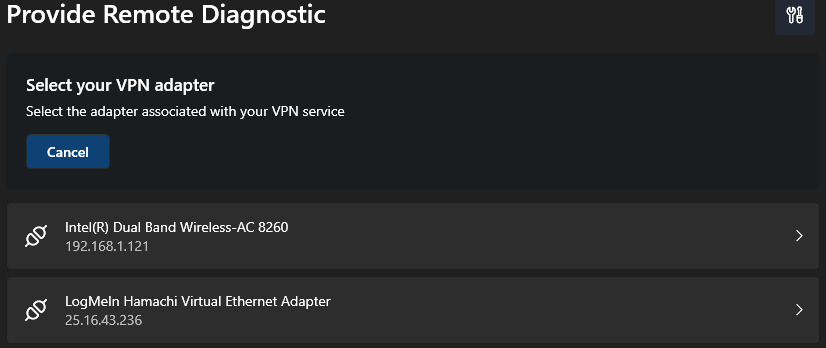

select VPN Network Card screen
3rd Party VPN Network Card selection
  1. Share the Session Key with your client, or send them the Session Link
    (note: Session Links require Car Connector to be installed and not currently running).
  2. On the client PC, open Car Connector and navigate to Receive Remote Diagnostic.
  3. Enter the Session Key generated in step 5.
  4. Tick the checkbox to agree to the terms.

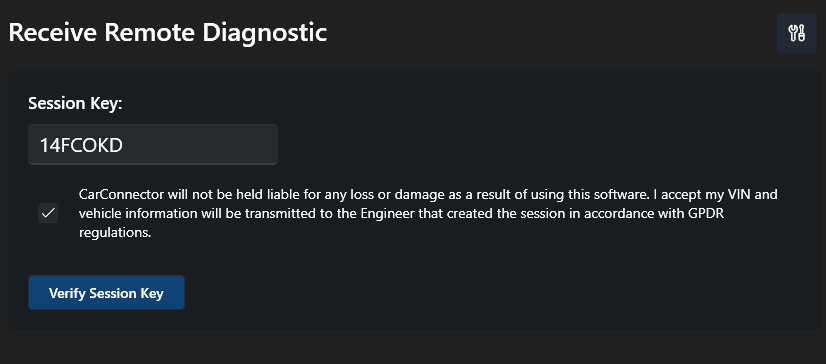

Receive Remote Diagnostics session key screen
Receive Remote Diagnostics screen
  1. Click Join Session.
  2. Select the VPN provider’s Network Card - in this case Hamachi.

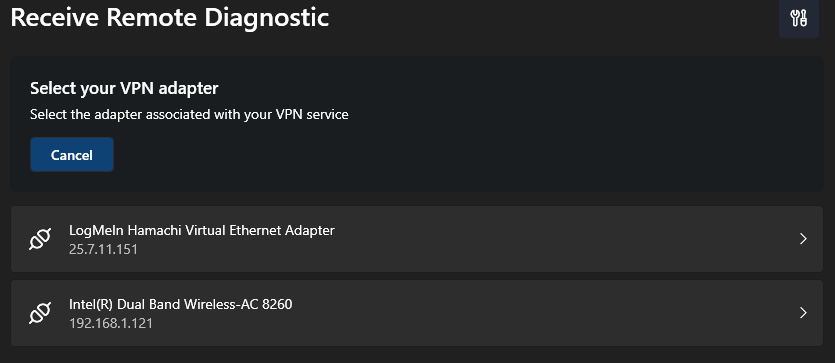

Select Network Card screen
3rd Party VPN Network Card selection
